Pyroelectric infrared (PIR) sensors are indispensable components in modern security systems, automation, and environmental monitoring. Their ability to passively detect changes in infrared radiation emitted by moving objects makes them ideal for a wide array of applications. However, extending their effective range, particularly in challenging outdoor environments, presents a unique set of engineering hurdles. Factors such as varying ambient temperatures, solar radiation, wind, and background IR noise can significantly degrade sensor performance, leading to false alarms and reduced detection capabilities. This article delves into the strategies and technological advancements crucial for maximizing the range and reliability of pyroelectric infrared sensors when deployed outdoors.
Understanding Outdoor Challenges
Outdoor environments are inherently dynamic, posing substantial challenges to the stable operation of PIR sensors. Temperature fluctuations, from scorching summer afternoons to freezing winter nights, directly impact the sensor’s baseline signal, often leading to drift or saturation. Direct sunlight contains strong IR components that can blind the sensor or generate spurious signals. Wind can cause rapid temperature changes on the sensor’s protective window, mimicking a legitimate target. Furthermore, background IR from warm surfaces, vehicle exhausts, or even distant animals can create a noisy environment, making it difficult to discern the faint thermal signature of a target at long distances. Overcoming these obstacles requires a multi-faceted approach, starting with the core sensor design.
Optimizing Sensor Elements and Design

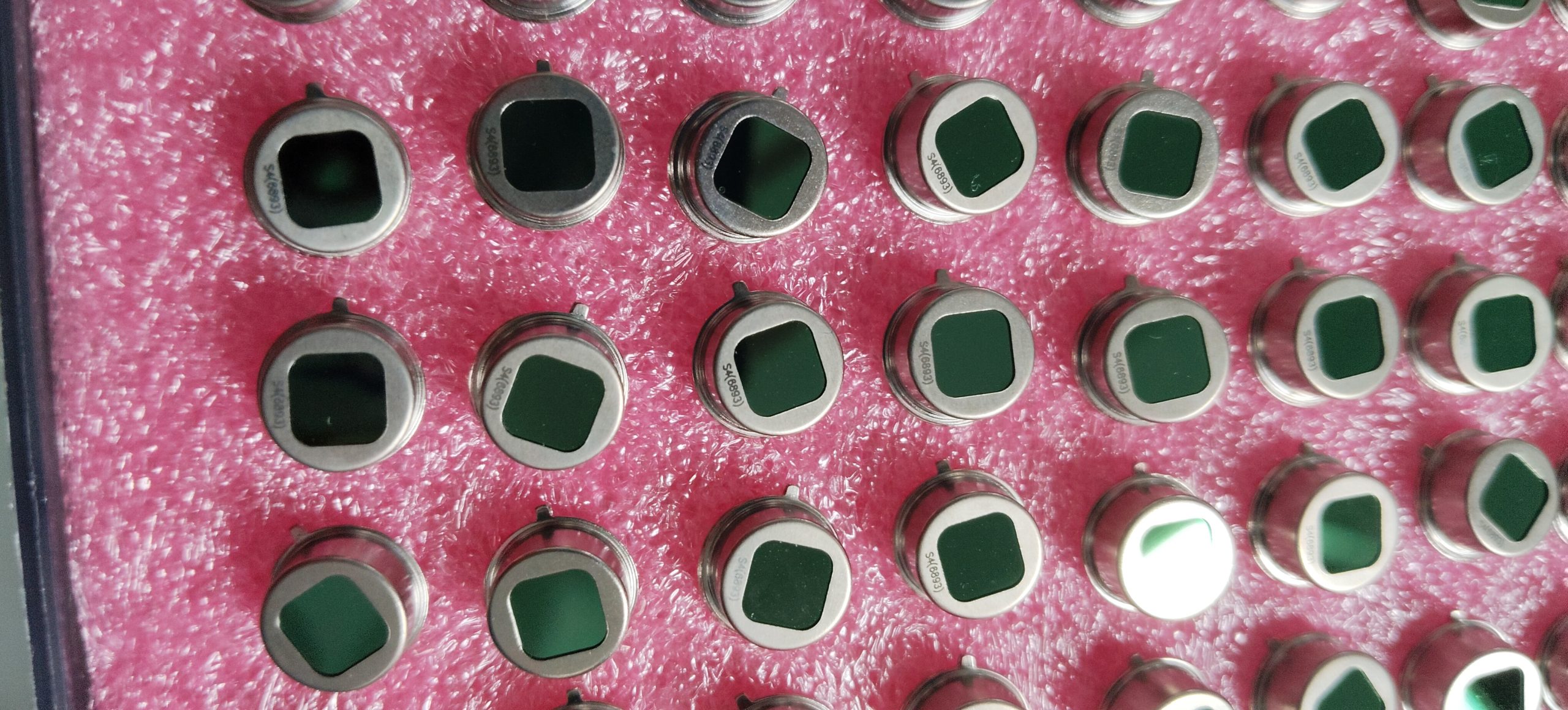

The fundamental sensitivity and stability of the pyroelectric element itself are paramount for achieving extended range. Larger sensor elements naturally capture more infrared energy, leading to a higher signal-to-noise ratio (SNR) for distant targets. Our GEWEE CLA-11 series, for instance, utilizes 1.6 * 2.1 large size components. This enhanced surface area allows the sensor to detect subtle thermal changes from targets located further away, making it a powerful solution for demanding applications like flame detection and gas monitoring sensors where precision at a distance is non-negotiable.
Beyond size, temperature compensation is critical for outdoor stability. Fluctuations in ambient temperature can cause the sensor’s own temperature to change, generating unwanted pyroelectric signals that can be misinterpreted as a target. The CLA-11 series addresses this directly by incorporating temperature compensated elements. This intelligent design ensures a more stable signal output across a wide operational temperature range, drastically reducing false alarms and increasing the reliability of detection, thereby extending the practical range in varying conditions.
Further design considerations include the choice of materials, internal shielding, and electrical configuration. Low-noise materials for the pyroelectric element and its associated circuitry minimize intrinsic electrical noise. The TO5 metal housing used in our CLA-11 series provides robust environmental protection and effective electromagnetic interference (EMI) shielding, safeguarding the delicate sensor from external disturbances. Operating in a voltage mode, coupled with a single power supply, simplifies integration for system designers while maintaining optimal signal integrity. These features, along with options like single channel configurations and our L-series offerings, underscore GEWEE’s commitment to providing versatile and high-performance sensor solutions.
The Pivotal Role of Advanced Optics
While the sensor element forms the core, optics play an equally crucial role in defining the sensor’s field of view and effective range. Fresnel lenses are the most common choice due to their cost-effectiveness and ability to focus infrared radiation onto the pyroelectric element from a wide area. A well-designed Fresnel lens system can create multiple, distinct detection zones, allowing the sensor to “see” across a larger area. The optical design – including focal length, f-number, and the number of facets – directly influences the sensor’s sensitivity to targets at different distances and angles. For very long-range applications, specialized reflective optics, such as parabolic or spherical mirrors, can be employed to concentrate IR energy from extremely distant objects onto the sensor, albeit typically with a narrower field of view. The choice of optical material, often high-density polyethylene (HDPE) for lenses, must also consider its transparency to the specific IR wavelengths emitted by targets and its durability in outdoor conditions.
Sophisticated Signal Processing and Algorithms
Even with optimized sensor design and optics, the raw signal from a PIR element requires sophisticated processing to reliably detect targets and suppress environmental noise. Low-noise preamplifiers are essential to boost the weak pyroelectric signal without introducing additional noise. Analog and digital filtering techniques are then applied to isolate the characteristic frequencies associated with moving targets from slower environmental changes or high-frequency electrical noise. Advanced digital signal processing (DSP) algorithms can differentiate between legitimate target signatures and false alarms caused by wind, sunlight variations, or small animals. Techniques such as adaptive thresholding, where the detection threshold dynamically adjusts based on ambient conditions, greatly improve performance. Furthermore, the integration of machine learning and artificial intelligence (AI) is emerging as a powerful tool for pattern recognition, enabling PIR systems to learn and distinguish between various IR signatures, significantly enhancing detection accuracy and reducing false positives at extended ranges.
System Integration and Power Management
Beyond the sensor itself, the entire system’s integration plays a vital role in maximizing range. Proper mounting and strategic placement minimize obstructions and optimize the sensor’s field of view. For remote outdoor deployments, efficient power management is critical. GEWEE’s CLA-11 series, with its single power supply requirement, simplifies the power infrastructure, making it easier to deploy in locations where power sources are limited or intermittent. This efficiency allows for longer operational periods on battery power, which is often a necessity for truly long-range, autonomous outdoor sensing. Robust, weather-resistant enclosures are also essential to protect the sensor and its electronics from harsh environmental elements, ensuring long-term reliability and consistent performance that directly translates to sustained effective range.
GEWEE’s Commitment to High-Performance Outdoor Sensing
At GEWEE, we are dedicated to advancing sensor technology to meet the most demanding applications. Our advanced sensor solutions, exemplified by the CLA-11 series, are engineered with an understanding of these outdoor challenges. By combining large, highly sensitive 1.6 * 2.1 components with advanced temperature compensation elements, we deliver a product that offers more stable signal output, drastically extending its effective detection range and reducing false alarms in variable conditions. Whether it’s for critical flame detection in industrial settings or reliable gas monitoring across wide outdoor areas, the CLA-11 series stands as a testament to our innovation in providing robust and high-performance solutions.
Conclusion
Maximizing the range of pyroelectric infrared sensors for outdoor applications is a complex endeavor that requires a holistic approach. It encompasses meticulous sensor element design, including larger components and robust temperature compensation; intelligent optical system engineering; sophisticated signal processing algorithms; and thoughtful system integration with efficient power management. By continually pushing the boundaries in these areas, companies like GEWEE are enabling PIR technology to achieve unprecedented levels of performance and reliability, opening new possibilities for outdoor sensing across a multitude of industries. As technology evolves, we can anticipate even more resilient and long-range PIR solutions that will further enhance safety, security, and efficiency in outdoor environments.
