How do IR flame detectors work?

In today’s industrial landscape, safeguarding against fire hazards is paramount. Among the most critical safety technologies flame detection systems stand as frontline defenders. Specifically, infrared (IR) flame detectors have revolutionized fire prevention by leveraging advanced optical principles and smart signal processing to identify flames within milliseconds of ignition. These devices serve as the sensory organs of modern fire protection systems, continuously scanning environments for telltale signs of combustion through specialized wavelength analysis. Their development represents years of engineering refinement, evolving from basic heat sensors to sophisticated instruments capable of distinguishing flames from ubiquitous heat sources in complex industrial settings.

The core mechanism of IR flame detectors revolves around detecting infrared radiation emitted during combustion. When a fire ignites, it produces specific IR wavelengths at 4.3 micrometers – a signature unique to burning carbon compounds. Unlike conventional heat detectors that merely register temperature thresholds, IR detectors actively scan this precise band, analyzing radiation patterns with remarkable precision. Hardware-wise, these devices utilize specialized thermopile or pyroelectric sensors coated with selective wavelength filters that only allow 4.3μm radiation to reach detection elements. This dual approach – both filtering and measuring intensity – distinguishes them from competitors (UV/IR detectors) by minimizing false triggers from solar radiation or hot machinery.

Modern detectors incorporate microprocessors running advanced algorithms that process raw IR data through multiple detection channels. These algorithms analyze flame characteristics including flicker frequency (typically 5-30 Hz), radiation signature consistency, and gradient patterns – all critical inputs for distinguishing actual flames from decoys like steam clouds or welding arcs. For instance, Shanghai Gewei Electronic Safety Equipment Co., Ltd. incorporates proprietary AI-driven false-rejection technologies in their multi-spectral technology flame detectors, achieving >99% detection accuracy across diverse industrial scenarios. These systems continuously reference environmental baselines, automatically compensating for conditions that would cripple conventional sensors.

Technical Architecture

IR detectors deploy a cascade of technical innovations enabling rapid response. Their optical system uses multiple silicon lenses that focus incoming IR radiation onto sensor arrays. The sensors convert radiation into electrical signals, which the microprocessor digitizes at high sampling rates (up to 100Hz). Key components include:

• Silicon lenses with multi-layer interference coatings for wavelength-selective focusing
• Quad-element detectors arranged in diagonal pattern for spatial discrimination
• 32-bit DSP processors running neural network optimization algorithms
• Signal-to-noise enhancement techniques operating at 24-bit resolution

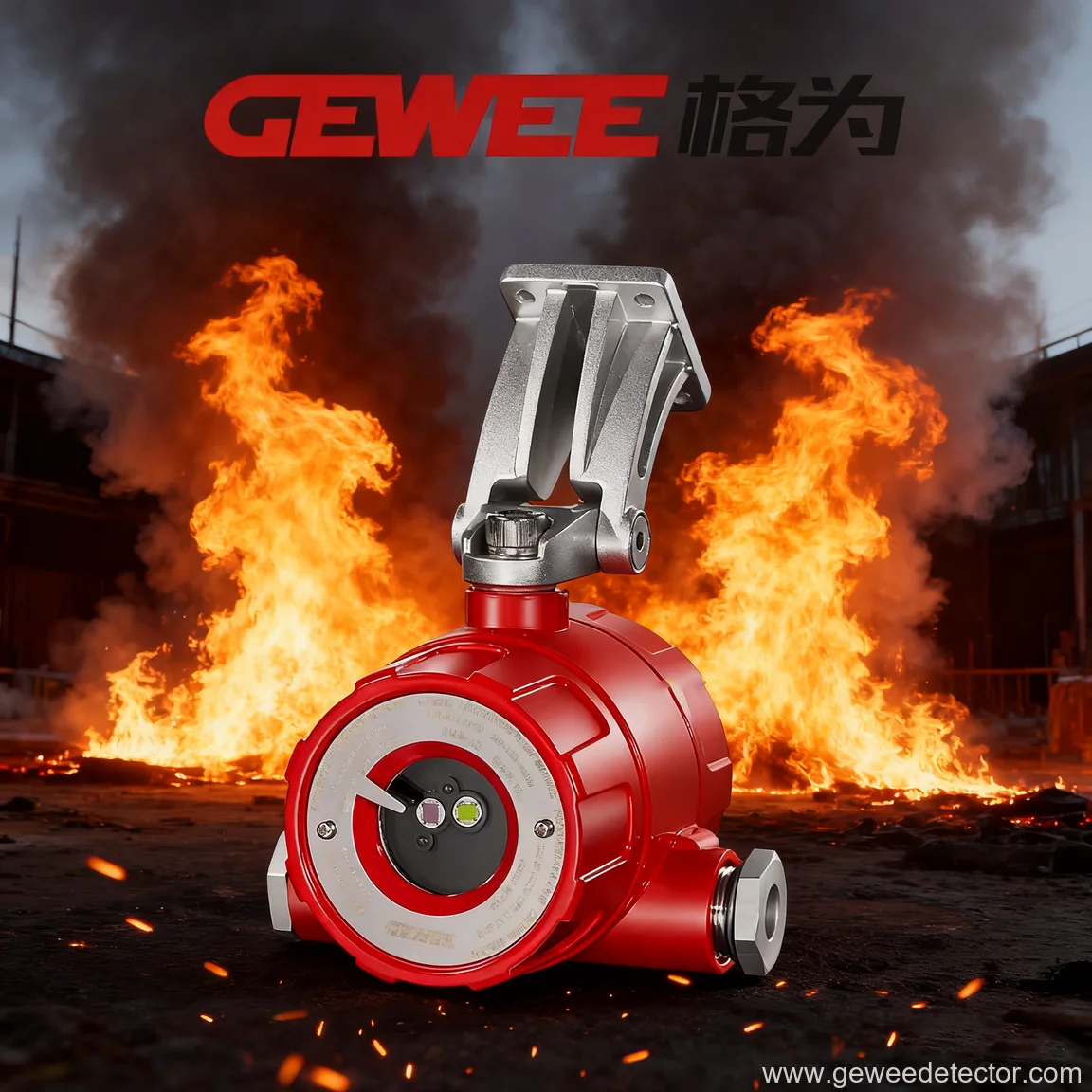

Our GW810 series exemplifies this sophistication, with detection distances exceeding 50 meters and response times under 1 second for fast-spreading hydrocarbon fires. These devices incorporate lens contamination detection systems that automatically activate maintenance alerts when IR transmission drops below optimal levels – critical for hazardous environment reliability.

Industry-Specific Adaptations

Different combustion sources require customized detection approaches. For example:

Each model incorporates application-specific algorithms – the GW100IR3 uses flame growth curve analysis for machinery enclosures, while GW800IR2 implements directional sensitivity matrices for large open-space facilities. This adaptability ensures detection remains precise whether monitoring warehouse sprinkler zones or aerospace fuel depots.

System Integration Excellence

Modern IR detectors function within larger safety ecosystems. Shanghai Gewei’s products provide multiple interfacing options including dry contact relays, fieldbus outputs (Modbus), and cloud connectivity via our IoT platform. When paired with our gas detection modules, systems implement cross-validation protocols – for example, halting ventilation if both flame and methane concentrations exceed thresholds simultaneously. The IP66/IP67 housings with temperature ranges from -40°C to 70°C ensure operational continuity across extreme outdoor conditions, while dual redundant power circuits (DC24V±6V with UPS backup) maintain critical functions during facility power loss.

As industrial environments become increasingly automated, the role of IR detectors evolves from simple alarm triggers to active safety collaborators. Our SIL2/SIL3-rated models process billions of spectral data daily to predict course corrections for stationary fire protection systems – transforming reactive safety into predictive resilience.

The technological trajectory points toward fully autonomous detection units equipped with machine learning capabilities that continuously refine their flame recognition libraries. Shanghai Gewei remains at this innovation frontier, with our next-generation IR detectors incorporating edge computing architectures enabling onboard threat classification and predictive maintenance forecasting. These advancements redefine what’s possible in fire prevention, transforming IR detection from a safeguard into an intelligent partner in industrial safety ecosystems.
