Importance of Fixed Gas Detectors in Emergency Response

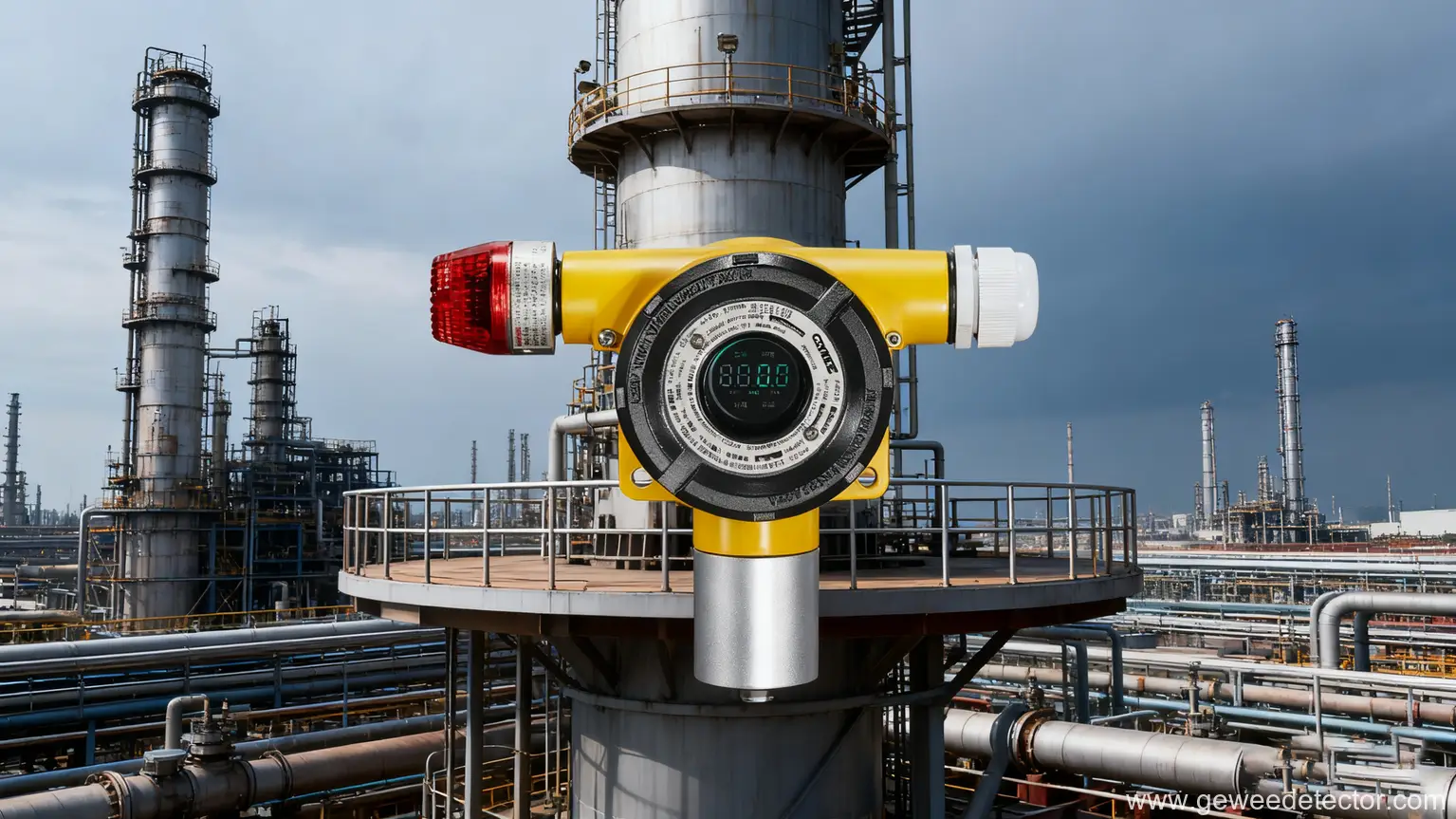

Fixed gas detectors play a critical role in emergency response plans by providing early detection of hazardous gases in industrial environments. These devices monitor air quality continuously and trigger alerts when gas concentrations exceed safe levels. In settings like petrochemical plants, refineries, and manufacturing facilities, where leaks of combustible or toxic gases pose immediate risks, integration with evacuation systems ensures timely action.
Emergency response plans outline procedures for identifying threats, notifying personnel, and executing safe evacuations. Fixed gas detectors serve as the first line of defense, detecting gases such as methane, hydrogen sulfide, or carbon monoxide before they reach dangerous levels. Once a detection occurs, the system interfaces with alarms, communication networks, and automated doors to facilitate orderly evacuation.
At Shanghai Gewei Electronic Safety Equipment Co., Ltd., our gas detection systems are designed for seamless integration. Our products, including the GDE and GDC series, use advanced sensors to ensure reliable performance in harsh conditions.
Detection Capabilities of Fixed Gas Detectors
Fixed gas detectors rely on various sensor technologies to identify gas presence. Common types include catalytic combustion, infrared, semiconductor, and electrochemical sensors. Each type suits specific gases and environments.
Catalytic combustion sensors detect combustible gases by measuring heat from oxidation on a heated element. They respond quickly to methane and propane but require regular maintenance to avoid poisoning from contaminants.
Infrared sensors, used in our GDE series, operate by absorbing infrared light at wavelengths unique to target gases. This method offers long sensor life over five years and immunity to poisoning, making it ideal for continuous monitoring in oil and chemical industries.
Semiconductor sensors change electrical resistance in the presence of gases like organic vapors, providing cost-effective detection for volatile organic compounds. Electrochemical sensors generate current proportional to toxic gas concentrations, such as hydrogen sulfide or chlorine, with high specificity.
Our GDC series incorporates these principles, featuring imported gas-sensitive elements with automatic temperature compensation and zero-point calibration. This ensures accuracy within ±3% for infrared models and ±5% for others, with response times of 20-25 seconds for T90.
Key Features for Reliable Operation
Effective detectors include features like 4-20mA analog output for integration with control systems, RS485 bus for networked communication up to 1.5km, and relay outputs for direct alarm activation. Our devices operate on DC24V with a range of 18-30V, consuming low current—40mA in monitoring mode for catalytic sensors.
Explosion-proof designs, certified to Exd IIC T6 Gb/DIP A20 TA T6, suit Zone 1 and 2 hazardous areas. IP66-rated enclosures protect against dust and water, with operating temperatures from -40°C to 70°C. Stability is maintained with zero drift under 2% every six months.
Visual indicators, such as color LED displays showing concentration and status, allow remote viewing up to 25 meters. Non-intrusive operation via remote controls or magnets simplifies maintenance without opening covers.
Integration with Evacuation Systems
Integrating fixed gas detectors with evacuation systems involves connecting detection signals to centralized controllers that activate response protocols. When a detector senses a gas level above the threshold—typically 25% LEL for combustibles—it sends signals via Modbus or analog outputs to the evacuation controller.
The controller then triggers audible and visual alarms, unlocks emergency exits, and interfaces with public address systems for voice announcements. In larger facilities, our GM810/GM820 gas alarm controllers use modular designs with automatic addressing for bus communication, supporting up to hundreds of detectors in a network.
These controllers feature multi-circuit protection, touch-button interfaces, and integration with external devices like sirens and strobe lights. For enhanced monitoring, our IoT cloud platform connects via 4G or WiFi modules, allowing remote access through mobile apps. This setup enables real-time data viewing and automated alerts to off-site personnel.
Step-by-Step Integration Process
1. Install detectors at potential leak points, ensuring coverage based on gas diffusion models. For example, place units near valves, pumps, and storage tanks.
2. Wire detectors to the alarm controller using RS485 for digital communication or 4-20mA for analog. Relays can directly control local alarms.
3. Configure thresholds in the controller: low alarm at 10-20% LEL, high at 50% LEL. Link outputs to evacuation logic, such as HVAC shutdown to prevent gas spread.
4. Test the system regularly, including sensor calibration and full evacuation simulations. Our pre-calibrated, plug-and-play sensors reduce setup time.
5. Incorporate with building management systems (BMS) for automated responses, like elevator recall or door controls.
In our GDA series, compact designs with higher integration facilitate installation in tight spaces like pharmaceutical plants or labs, offering cost-effective solutions with white LED displays for clear concentration readout.
Benefits of Integrated Systems
Integrated systems reduce response times from minutes to seconds, minimizing exposure risks. Early detection prevents explosions or toxic exposures, complying with standards like GB15322-2003 and GB3836-2010.
Our products enhance safety with features like anti-poisoning catalytic sensors lasting over three years and infrared options for extended reliability. The modular controllers support scalable deployments, from single zones to enterprise-wide networks.
Maintenance is streamlined: sensors auto-compensate for temperature, and drift is minimal. Accessories like voice-light alarms, I/O modules, and backup power ensure uninterrupted operation.
Case Studies and Applications
In petrochemical facilities, our fixed gas detectors integrated with evacuation systems have detected methane leaks, activating alarms and guiding workers to safe zones via mapped exit routes.
For power plants, GDC810 models monitor hydrogen, interfacing with controllers to shut down generators and initiate evacuations. In underground corridors, diffusion-based placement covers large areas efficiently.
Our IoT platform logs incidents for post-event analysis, improving plan refinements. With CCC fire approval and CPA metering licenses, our systems meet regulatory demands across industries.
Choosing the Right Detector for Your Plan
Select detectors based on gas type, environment, and integration needs. For combustible gases in explosive areas, opt for infrared or laser sensors from the GDE series. Toxic gas monitoring benefits from electrochemical types in controlled settings.
Consider output compatibility: ensure relays match evacuation relay inputs, and bus protocols align with your network. Budget for controllers like GM820, which offer flexible expansion without rewiring.
Shanghai Gewei provides tailored solutions, combining gas detectors with flame detection using UV/IR and multi-spectral tech, plus AI analysis for precise threat identification. Our cloud platform adds remote oversight, completing a comprehensive emergency response framework.
Implementing these integrations not only safeguards lives but also protects assets, ensuring operational continuity post-incident.
