Comparing Different Types of Pyroelectric Infrared Sensors for DIY Projects

Pyroelectric infrared (PIR) sensors are ubiquitous in modern electronics, silently powering everything from automatic lights to security systems. For the ambitious DIY enthusiast, these sensors offer a gateway to a myriad of exciting projects, enabling intelligent automation and enhanced environmental awareness. Unlike simple photodetectors, PIRs respond to changes in infrared radiation emitted by objects, primarily heat, making them ideal for detecting motion, human presence, or even flame signatures. However, not all PIR sensors are created equal. This article will delve into the various types of pyroelectric infrared sensors available, highlighting their operational principles, advantages, disadvantages, and ideal applications, helping you choose the perfect sensor for your next DIY endeavor. We’ll also explore how advanced solutions, such as those from GEWEE, are pushing the boundaries of what’s possible in DIY flame detection and gas sensing.

Understanding Pyroelectric Principles

At their core, pyroelectric sensors contain crystalline materials that generate an electrical charge when exposed to changes in temperature, specifically infrared radiation. They don’t detect absolute temperature but rather the change in temperature. This is crucial for their operation. When a warm object (like a person or a flame) moves into or out of the sensor’s field of view, the change in IR radiation causes a temperature fluctuation in the pyroelectric element, generating a voltage signal. This inherent sensitivity to change makes them excellent for dynamic events but requires careful design to avoid false positives from environmental temperature shifts.

Common Types of Pyroelectric Sensors

1. Single Element Sensors

These are the simplest form of pyroelectric sensors, consisting of a single pyroelectric element. When IR radiation changes, this single element generates a signal. While straightforward, single-element sensors are highly susceptible to false triggers caused by ambient temperature changes or electrical noise. Imagine a room where the air conditioner kicks in; the sudden temperature drop could be misinterpreted as motion. For this reason, they are less commonly used in applications requiring high reliability, especially in environments with fluctuating temperatures. Their primary advantage lies in their simplicity and often lower cost, making them suitable for very basic, non-critical detection tasks where some false positives are acceptable.

2. Dual Element Sensors (Standard PIRs)

By far the most common type for general motion detection, dual-element sensors feature two pyroelectric elements wired in opposition. These elements are placed side-by-side, often beneath a multi-faceted Fresnel lens that directs IR radiation onto them. When a warm object moves across the sensor’s field of view, it first heats one element, then the other. Because they are wired to cancel each other out, any uniform change in ambient temperature affects both elements equally, resulting in no net signal output. However, a moving heat source causes a differential signal, making them highly effective at detecting motion while largely ignoring slow, widespread temperature changes. This common-mode rejection is why they are the workhorse of security systems and occupancy sensors. For most DIY motion detection projects, a dual-element PIR is the go-to choice due to its robust performance and cost-effectiveness.

3. Quad Element Sensors

Taking the concept of differential detection further, quad-element sensors incorporate four pyroelectric elements, typically arranged in a 2×2 configuration. These are again wired in opposition to provide enhanced common-mode rejection and often offer a finer resolution for detection. With multiple elements, they can provide more nuanced information about the direction of motion or distinguish between smaller and larger heat sources more effectively. While more expensive and complex to integrate than dual-element sensors, quad-element sensors are favored in applications requiring higher sensitivity, wider coverage, or more sophisticated motion analysis, such as advanced human presence detection or larger surveillance areas.

4. Integrated Modules (e.g., HC-SR501)

While not a “type” of pyroelectric sensor in terms of the element itself, integrated modules are extremely popular in DIY circles. These typically combine a dual-element pyroelectric sensor with a Fresnel lens and necessary signal conditioning circuitry (amplifier, comparator, often a time-delay and sensitivity adjustment potentiometers) onto a single PCB. They output a simple high/low signal when motion is detected, simplifying integration into microcontrollers like Arduino or ESP32. Their ease of use makes them an excellent starting point for beginners, abstracting away the complexities of analog signal processing. However, they offer less flexibility in terms of customizing lens optics or fine-tuning the raw sensor output.

Advanced Considerations for DIY Projects

When selecting a pyroelectric sensor for your project, beyond the number of elements, several other factors come into play:

• Sensitivity and Noise: A highly sensitive sensor can detect subtle IR changes, but it might also be more prone to electrical noise or false triggers. For critical applications, look for sensors with good signal-to-noise ratios (SNR).
• Field of View (FOV) and Optics: The Fresnel lens plays a critical role in shaping the sensor’s FOV. Different lenses offer various patterns (e.g., wide-angle, long-range, curtain) to suit specific detection areas.
• Output Mode: Most raw pyroelectric elements produce a small analog voltage. Integrated modules convert this to a digital high/low. Some advanced sensors, like the GEWEE CLA-11 L-series, offer a direct Voltage mode output, allowing for more precise analog-to-digital conversion and finer control over signal interpretation by your microcontroller. This voltage mode output provides greater flexibility for advanced algorithms.

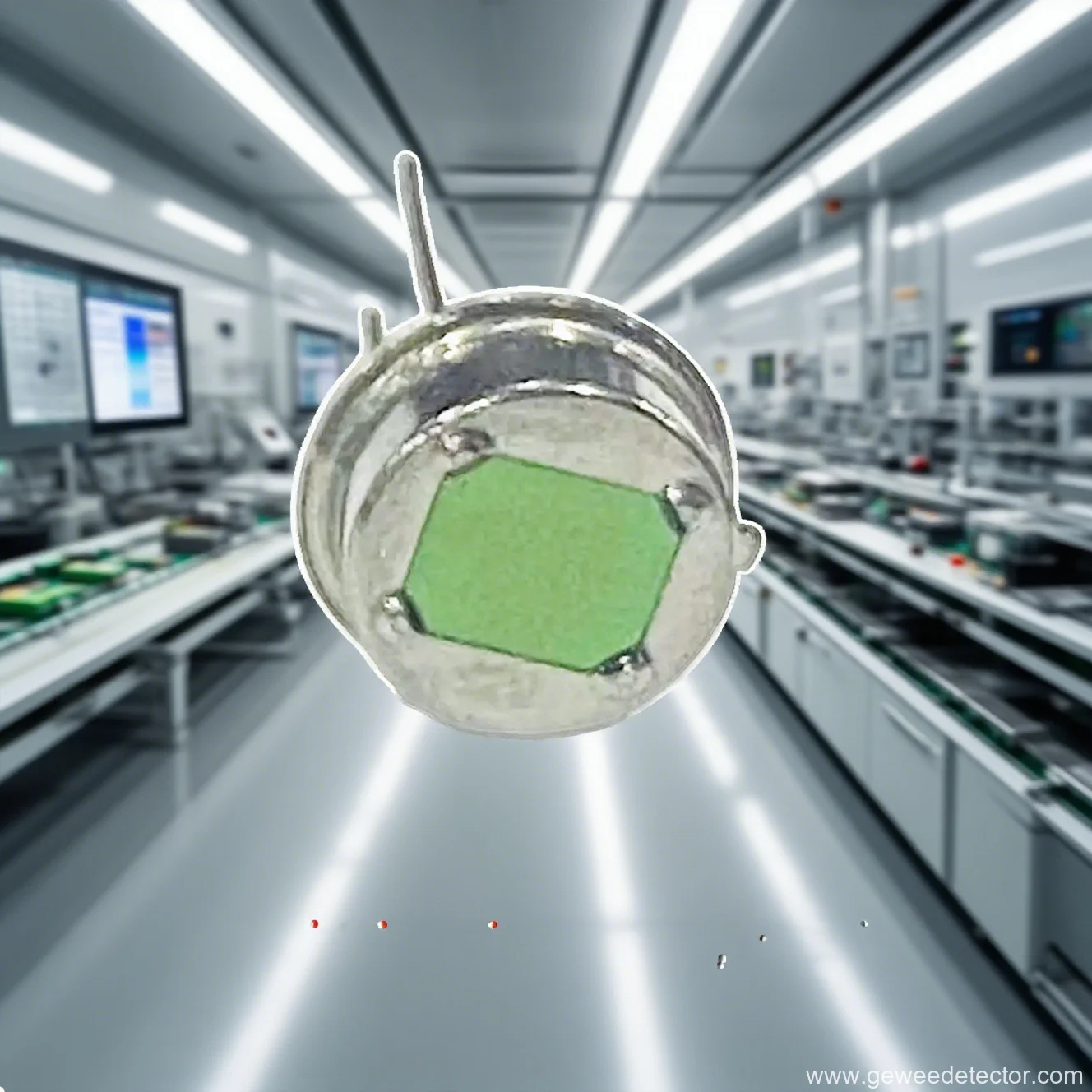

• Packaging: Sensors come in various packages. The common TO5 metal housing, seen in high-quality sensors like our GEWEE CLA-11, offers robust environmental protection and consistent performance.
• Temperature Compensation: This is perhaps one of the most critical features for stable and reliable operation. As discussed, PIRs are sensitive to temperature changes. If the ambient temperature itself drifts, even a dual-element sensor can experience baseline shifts or drift. Temperature compensated elements actively counteract these effects, providing a much more stable signal output. This is a hallmark feature of the GEWEE CLA-11 series. Our engineers designed the CLA-11 with this in mind, ensuring greater stability even in challenging environmental conditions, which is crucial for applications demanding accuracy.
• Power Supply: Simplicity is key for DIY. Sensors that operate with a single power supply reduce component count and simplify circuit design, making integration smoother.

Introducing GEWEE’s CLA-11 Series: A Solution for Specialized DIY

At GEWEE, we understand that DIY projects are evolving beyond simple motion detection. Makers are increasingly looking for sophisticated solutions for safety and environmental monitoring. This is precisely where our CLA-11 series of sensors shines. While many DIY projects might settle for basic PIRs, the CLA-11 series provides a robust and reliable solution for more demanding tasks such as flame detection and gas sensing.

What sets the CLA-11 apart for serious DIYers?

• Optimized for Flame and Gas Detection: Unlike generic PIRs, the CLA-11 is specifically engineered for these critical applications. Its ability to detect specific IR signatures associated with flames and certain gases makes it invaluable.
• Stable Signal Output: We’ve integrated 1.6 * 2.1 large size components and advanced temperature compensation elements. This thoughtful design ensures a much more stable and reliable signal output, minimizing false positives and providing accurate data crucial for safety systems.
• L-Series Performance: As part of our L-series, the CLA-11 represents our commitment to high performance and reliability.
• Single Channel Simplicity: Despite its advanced capabilities, the CLA-11 maintains a single channel output, simplifying integration with your microcontroller while providing rich data.
• Voltage Mode Output: As mentioned, its voltage mode output allows for precise analog interpretation, giving you greater control over the sensitivity and processing of detected signals.
• Robust TO5 Metal Housing: Encased in a durable TO5 metal housing, the CLA-11 is built to withstand various environmental stresses, ensuring long-term performance in your projects.
• Single Power Supply: Designed for ease of use, it operates efficiently with a single power supply, streamlining your circuit design.

Imagine building a smart home system that not only detects motion but can also alert you to a gas leak or the presence of a fire. With the GEWEE CLA-11, these advanced functionalities are within the reach of the dedicated DIY enthusiast, offering a level of reliability and precision previously reserved for industrial applications.

Practical DIY Applications

• Motion-Activated Lighting: The classic application, using dual-element PIRs.
• Security Systems: Detecting intruders.
• Human Presence Detection: For energy-saving systems in smart homes or offices.
• Automated Doors/Gates: Opening when someone approaches.
• Smart Pet Feeders: Dispensing food when a pet is detected.
• Advanced Fire Safety Systems: Utilizing sensors like the GEWEE CLA-11 for early flame detection in workshops or critical areas.
• Environmental Monitoring: Implementing the GEWEE CLA-11 for basic gas sensing in areas prone to specific gas buildups (e.g., detecting changes in IR absorption related to CO2 or methane).

Conclusion

Choosing the right pyroelectric infrared sensor is paramount for the success and reliability of your DIY project. From the simplicity of single-element sensors for basic tasks to the robustness of dual and quad-element designs for general motion, and finally to specialized solutions like the GEWEE CLA-11 series for critical flame detection and gas sensing, the options are diverse. Understanding the nuances of each type, especially features like temperature compensation and output modes, empowers you to make informed decisions. By leveraging advanced sensors like ours, DIY enthusiasts can transcend basic automation, creating truly intelligent and responsive systems that enhance safety, convenience, and environmental awareness. Explore the possibilities and elevate your projects with the right pyroelectric technology.
